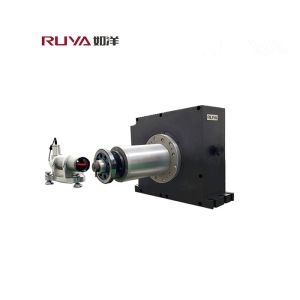

ZDFT-360A Program-controlled Automatic Multi-tooth Indexing Table
Product Description
The segmented multi-tooth indexing table consists of a multi-tooth indexing table and a set of segmented drum wheel reading systems, which can achieve the highest resolution of angle readings up to 0.1" on both fixed and movable reading sleeves, and is suitable for measurement sites where continuous readings are required.
The program-controlled multi-tooth indexing table is controlled by a computer-controlled stepper motor to realize the lifting and rotation of the upper tooth disc, so that the work of the multi-tooth indexing table is controlled by the program to achieve automatic testing.
Product Parameters
Model | ZDFT-360A | |
Table diameter (mm) | Φ205 | |
Dimensions (mm) | 368x138x362 | |
Accuracy
| Vertical use | 0.5" |
Horizontal use | 1" | |
Angle Measuring Repeatability Accuracy | 0.2" | |
Load (kg) | 30 | |
Weight (kg) | 45 | |
